How to use the Palace API Web Service (Properties)

Palace offers the ability to perform various functions through a secure API Web Service. This article describes the REST endpoint and contracts for 'Properties' in Palace.

Property List (Sync)
Property Insert

GET (Detailed List of 'Properties')

NZ: https://serviceapi.realbaselive.com/Service.svc/RestService/ViewAllDetailedProperty
Aus: https://serviceapia.realbaselive.com/Service.svc/RestService/ViewAllDetailedProperty

(No Parameters)

Field Name	Definition
PropertyAddress1	Street No. of Property
PropertyAddress2	Street Name of Property
PropertyAddress3	Suburb of Property
PropertyAddress4	Region of Property
PropertyAgentEmail1	The '1st Email Address' of the 'Primary Agent' for the 'Owner' of the 'Property'
PropertyAgentEmail2	The '2nd Email Address' of the 'Primary Agent' for the 'Owner' of the 'Property'
PropertyAgentFullName	The 'Full Name' for the 'Primary Agent' for the 'Owner' of the 'Property'
PropertyArchived	Indicates if the 'Property' is archived
PropertyChangeCode	'PropertyChangeCode' allows developers to only update changed records if this information is recorded against the 'PropertyCode'. If this information has not changed for a previous sync then no update is required within the 3rd party system.
PropertyCode	Internal unique code generated by Palace. Used to identify a Property within Palace to the corresponding database entry.
PropertyCurrentBalance	Property 'Current Balance'
PropertyDateAvailable	Date the property is to be made available for advertising
PropertyDisbursementsLimited	Are the 'Property Disbursement' limited to a defined amount ('true' or 'false')
PropertyDisbursementsMaxAmount	If the 'Property Disbursement' is limited, then what is the amount it's limited to.
PropertyGrid	Grid / Grouping for Geographical Locations (i.e. Map Grids)
PropertyKeyAccess	'Key Access' information for the property
PropertyKeyNo	'Key No' for the Property
PropertyMaintenanceFeePercent	Maintenance Fee %
PropertyCommissionPercent	Management Fee %
PropertyName	Property Name
PropertyOpeningBalance	Property 'Opening Balance' for the current month
PropertyOurCode	User Code for property
PropertyOwnerCode	Code can be obtained from GET (Following contract): NZ https://serviceapi.realbaselive.com/Service.svc/RestService/ViewAllDetailedOwner AUS https://serviceapia.realbaselive.com/Service.svc/RestService/ViewAllDetailedOwner
PropertyPhone	Property Phone Number
PropertyPostCode	Property Post Code
PropertyRentalAmount	Property Rental Amount for 'Advertising'
PropertyRentalPeriod	Property Rental Period (only options below): Day Week Fortnight Month
PropertySortCode	Property Sort Code (Generally this is the 'Street Name')
PropertyStartDate	Date the Property started being managed
PropertyStatus	Property Status (Active / Inactive)
PropertyUnit	Unit of the Property

POST (Service Name 'v2InsertProperty')

NZ: https://serviceapi.realbaselive.com/Service.svc/RestService/v2InsertProperty
Aus: https://serviceapia.realbaselive.com/Service.svc/RestService/v2InsertProperty

XSD Definition

(NOTE: Non-Mandatory elements may be missing, but existing elements must be in the correct order as listed below)

Red = Mandatory
Blue = Date Formats (Must be yyyy-MM-dd)

<xs:complexType name="v2InsertProperty">
<xs:sequence>
<xs:element minOccurs="1" name="OwnerCode" nillable="true" type="xs:string"/>
<xs:element minOccurs="1" name="PropertyAddress1" nillable="true" type="xs:string"/>
<xs:element minOccurs="1" name="PropertyAddress2" nillable="true" type="xs:string"/>
<xs:element minOccurs="0" name="PropertyAddress3" nillable="true" type="xs:string"/>
<xs:element minOccurs="0" name="PropertyAddress4" nillable="true" type="xs:string"/>
<xs:element minOccurs="0" name="PropertyAdvert" nillable="true" type="xs:string"/>
<xs:element minOccurs="0" name="PropertyBrochureDetails" nillable="true" type="xs:string"/>
<xs:element minOccurs="0" name="PropertyBrochureTitle" nillable="true" type="xs:string"/>
<xs:element minOccurs="0" name="PropertyBuildingGroupCode" nillable="true" type="xs:string"/>
<xs:element minOccurs="0" name="PropertyBuildingTypeCode" nillable="true" type="xs:string"/>
<xs:element minOccurs="0" name="PropertyDateAvailable" nillable="true" type="xs:string"/>
<xs:element minOccurs="0" name="PropertyDisbursementsLimited" nillable="true" type="xs:boolean"/>
<xs:element minOccurs="0" name="PropertyDisbursementsMaxAmount" nillable="true" type="xs:double"/>
<xs:element minOccurs="0" name="PropertyExternalSuburbCode" nillable="true" type="xs:string"/>
<xs:element minOccurs="0" name="PropertyGrid" nillable="true" type="xs:string"/>
<xs:element minOccurs="0" name="PropertyInspectionFeeAmount" nillable="true" type="xs:double"/>
<xs:element minOccurs="0" name="PropertyKeepBackAmount" nillable="true" type="xs:double"/>
<xs:element minOccurs="0" name="PropertyKeepBackAmountAccumulated" nillable="true" type="xs:double"/>
<xs:element minOccurs="0" name="PropertyKeepBackupReason" nillable="true" type="xs:string"/>
<xs:element minOccurs="0" name="PropertyLocalAuthorityAccountNumber" nillable="true" type="xs:string"/>
<xs:element minOccurs="0" name="PropertyMaintenanceFee" nillable="true" type="xs:double"/>
<xs:element minOccurs="0" name="PropertyManagementFee" nillable="true" type="xs:double"/>
<xs:element minOccurs="0" name="PropertyManagementGroupCode" nillable="true" type="xs:string"/>
<xs:element minOccurs="1" name="PropertyManagementTypeCode" nillable="true" type="xs:string"/>
<xs:element minOccurs="0" name="PropertyMarketValuation" nillable="true" type="xs:double"/>
<xs:element minOccurs="0" name="PropertyMaxTenants" nillable="true" type="xs:int"/>
<xs:element minOccurs="0" name="PropertyName" nillable="true" type="xs:string"/>
<xs:element minOccurs="0" name="PropertyNotes" nillable="true" type="xs:string"/>
<xs:element minOccurs="0" name="PropertyOurCode" nillable="true" type="xs:string"/>
<xs:element minOccurs="0" name="PropertyPhone" nillable="true" type="xs:string"/>
<xs:element minOccurs="0" name="PropertyPostCode" nillable="true" type="xs:string"/>
<xs:element minOccurs="0" name="PropertyRentalAmount" nillable="true" type="xs:double"/>
<xs:element minOccurs="0" name="PropertyRentalPeriod" nillable="true" type="xs:string"/>
<xs:element minOccurs="1" name="PropertySortCode" nillable="true" type="xs:string"/>
<xs:element minOccurs="0" name="PropertyStartDate" nillable="true" type="xs:string"/>
<xs:element minOccurs="0" name="PropertyUnit" nillable="true" type="xs:string"/>
<xs:element minOccurs="1" name="PropertyWonActiveReason" nillable="true" type="xs:string"/>
<xs:element minOccurs="0" name="PropertyWonActiveReasonComments" nillable="true" type="xs:string"/>
<xs:element minOccurs="1" name="PropertyWonActiveReasonDate" nillable="true" type="xs:string"/><xs:element minOccurs="1" name="SystemBankCode" nillable="true" type="xs:string"/>
</xs:sequence>
</xs:complexType>

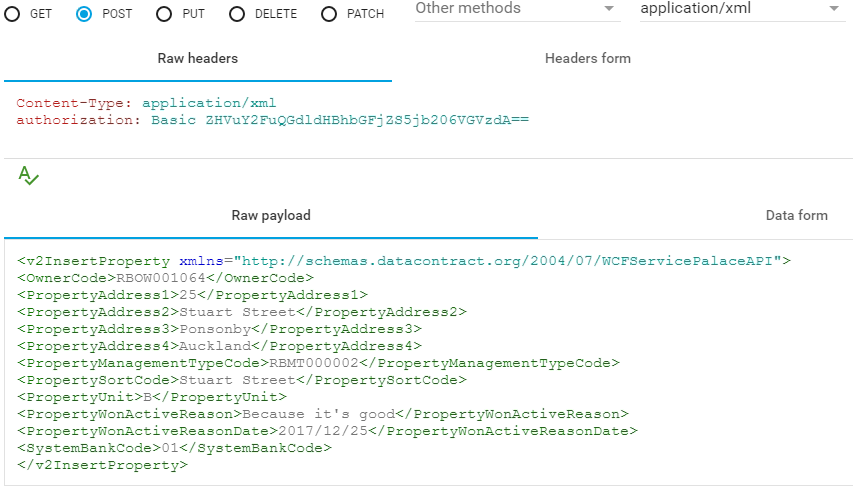

Example

Definitions

Field Name	Definition
OwnerCode	Code can be obtained from GET (Following contract): NZ https://serviceapi.realbaselive.com/Service.svc/RestService/ViewAllDetailedOwner AUS https://serviceapia.realbaselive.com/Service.svc/RestService/ViewAllDetailedOwner
PropertyAddress1	Street No. of Property
PropertyAddress2	Street Name of Property
PropertyAddress3	Suburb of Property
PropertyAddress4	Region of Property
PropertyAdvert	Advert Text to put into Property (Web Advertising)
PropertyBrochureDetails	Brochure Text to put into Property
PropertyBrochureTitle	Brochure Title to put into Property
PropertyBuildingGroupCode	Code can be obtained from GET (Following contract): NZ https://serviceapi.realbaselive.com/Service.svc/RestService/v2ViewAllDetailedPropertyBuildingGroup AUS https://serviceapia.realbaselive.com/Service.svc/RestService/v2ViewAllDetailedPropertyBuildingGroup
PropertyBuildingTypeCode	Code can be obtained from GET (Following contract): NZ https://serviceapi.realbaselive.com/Service.svc/RestService/v2ViewAllDetailedPropertyBuildingType AUS https://serviceapia.realbaselive.com/Service.svc/RestService/v2ViewAllDetailedPropertyBuildingType
PropertyDateAvailable	Date the property is to be made available for advertising
PropertyDisbursementsLimited	Are the 'Property Disbursement' limited to a defined amount ('true' or 'false')
PropertyDisbursementsMaxAmount	If the 'Property Disbursement' is limited, then what is the amount it's limited to.
PropertyExternalSuburbCode	Code can be obtained from GET (Following contract): NZ https://serviceapi.realbaselive.com/Service.svc/RestService/v2ViewAllDetailedPropertyExternalSuburbs AUS https://serviceapia.realbaselive.com/Service.svc/RestService/v2ViewAllDetailedPropertyExternalSuburbs
PropertyGrid	Grid / Grouping for Geographical Locations (i.e. Map Grids)
PropertyInspectionFeeAmount	Amount to 'Charge' for inspections
PropertyKeepBackAmount	Amount to 'Keep Back' (This month)
PropertyKeepBackAmountAccumulated	Amount to 'Keep Back' (Accumulating into 'This Month')
PropertyKeepBackupReason	What is the 'Keep Back' reason (if you are withholding funds)
PropertyLocalAuthorityAccountNumber	Local Authority / Rates Number
PropertyMaintenanceFee	Maintenance Fee %
PropertyManagementFee	Management Fee %
PropertyManagementGroupCode	Code can be obtained from GET (Following contract): NZ https://serviceapi.realbaselive.com/Service.svc/RestService/v2ViewAllDetailedPropertyManagementGroup AUS https://serviceapia.realbaselive.com/Service.svc/RestService/v2ViewAllDetailedPropertyManagementGroup
PropertyManagementTypeCode	Code can be obtained from GET (Following contract): NZ https://serviceapi.realbaselive.com/Service.svc/RestService/v2ViewAllDetailedPropertyManagementType AUS https://serviceapia.realbaselive.com/Service.svc/RestService/v2ViewAllDetailedPropertyManagementType
PropertyMarketValuation	Property Market Valuation amount
PropertyMaxTenants	Maximum number of tenants allowed in property
PropertyName	Property Name
PropertyNotes	Notes / Comments to put against property
PropertyOurCode	User Code for property
PropertyPhone	Property Phone Number
PropertyPostCode	Property Post Code
PropertyRentalAmount	Property Rental Amount for 'Advertising'
PropertyRentalPeriod	Property Rental Period (only options below): Day Week Fortnight Month
PropertySortCode	Property Sort Code (Generally this is the 'Street Name')
PropertyStartDate	Date the Property started being managed
PropertyUnit	Unit of the Property
PropertyWonActiveReason	How the Property was obtained for management Existing reasons can be obtained from GET (Following contract): NZ https://serviceapi.realbaselive.com/Service.svc/RestService/v2ViewAllDetailedPropertyActiveReasons AUS https://serviceapia.realbaselive.com/Service.svc/RestService/v2ViewAllDetailedPropertyActiveReasons
PropertyWonActiveReasonComments	How the property was obtained for management (comments)
PropertyWonActiveReasonDate	Date the property was obtained for management
SystemBankCode	Code can be obtained from GET (Following contract): NZ https://serviceapi.realbaselive.com/Service.svc/RestService/v2ViewAllDetailedSystemBank AUS https://serviceapia.realbaselive.com/Service.svc/RestService/v2ViewAllDetailedSystemBank
